Universal Allison DOC for PC 2023 Diagnostic Software- Latest Version Premium 2023 – Highest Level Activation

Universal Allison DOC for PC 2023 – Latest Full Version 2023
Full Online installation And Activation Service !!
Include Updated GEN5 Files 2023 !

Universal Allison DOC for PC 2023 is the Dealer Software For Allison Transmissions –
Full Online Installation And Activation!

Include The Highest Activation Level – Engineering Level !

* Protected Parameters Password Generator Tool !

* Authorized Reprogramming Highest Level !

* Full Authorized Tac-Data

* Engineering Level Reprogramming

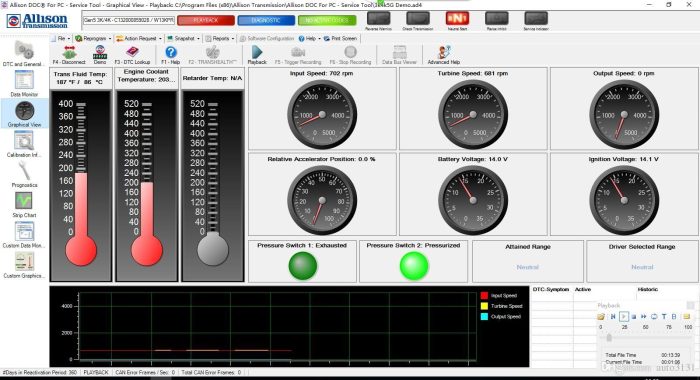

The Allison DOC (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, and transmissions using CEC3/CEC2/CEC1 controls.

This product is a full licensed copy and does not require an existing version license to activate.

New Features and Enhancements included with V2021.1

The Allison DOC® V2021.1 Subscription update includes the following new features/functions:
• Adds basic support of Allison 6th Gen Controls hardware and software ahead of full production
• Adds interfaces for Allison’s Product Cybersecurity System (PCS)
• “Display J1939 Data” is enabled for 4th Gen and later 1000 Series™, 2000 Series™, 3000 Series™,
4000 Series™ and TC10® Product Family transmission connections

Ability to auto-try channels (5th Gen / Type-2 vehicle connections) for OEMs who have wired the TCM diagnostics to CAN 2 or CAN 3
Ability to find the correct CAN data bus for diagnostics
Eliminates the need for OEM specific cross-over cables
Ability to select the channel for Data Bus Viewer
Allows reprogramming of DYNAMIC SHIFT SENSING: Custom Breakpoint Setting
Allows reprogramming of RETARDER: Use Accumulator

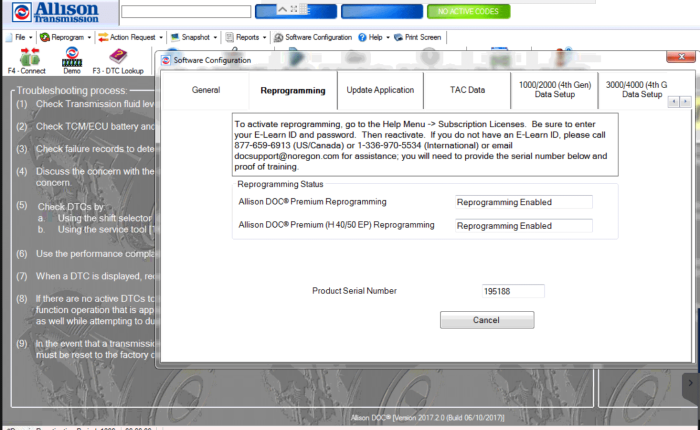

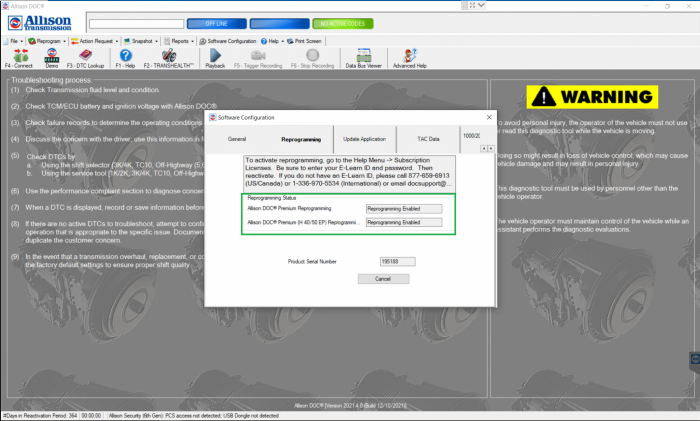

Allows reprogramming of SHIFT SELECTORS: Preselect Time Out with password from Allison TAC
Allows reprogramming of SHIFT SELECTORS: Preselect Time Out Duration and Range when SHIFT SELECTORS: Preselect Time Out is Enabled
Adds Troubleshooting Manual for Off-Highway CEC5

Also, when purchasing this product you get:
Security measures to control reprogramming TCM/ECU parameters
Integrated Help with training videos
Diagnostic Trouble Code information with a direct link to Troubleshooting Manuals for CEC2/CEC3/CEC5, 1000/2000, 3000/4000 and TC10 Product Families
A demo mode using prerecorded data
SmartConnect for detecting the PC-to-vehicle translation device and communication link
Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module.

Full administrative privileges are required to install, use, the update Allison DOC® Premium, but don’t worry we provide after-sales service and support. Our managers to help you.

Note:
Selecting Jl 708 as the protocol (used on WTEC2, WTEC3 and CEC2 TCMs) while
physically connected to a later model TCM may cause errors, including trouble
codes, on the vehicle. Technicians who are not sure of the correct protocol, should
select ‘SmartConnect’ or try JI 708 last

Operating System and PC Requirements:
Microsoft® Windows 7®, Windows 8®, Windows 10®
20 GB Hard Drive (40 GB or greater recommended)
3 GB free hard drive space required to install the program (after software installation, the operating system requires sufficient free hard disk space to run the program)

Updates specific to Allison DOC® Premium:

• Adds RP1210C enhancements – Ability to auto­try channels (5th Generation/Type­2 vehicle connections) for OEMs who have wired the TCM diagnostics to CAN 2 or CAN 3
• Ability to find the correct CAN data bus for diagnostics • Eliminates the need for OEM specific cross­over cables – Ability to select channel for Data Bus Viewer
• Allows reprogramming of DYNAMIC SHIFT SENSING: Custom Breakpoint Setting
• Allows reprogramming of RETARDER: Use Accumulator
• Allows reprogramming of SHIFT SELECTORS: Preselect Time Out with password from Allison TAC – Allows reprogramming of SHIFT SELECTORS:
  Preselect Time Out Duration and Range when SHIFT SELECTORS: Preselect Time Out is Enabled
• Adds Troubleshooting Manual for Off­Highway CEC5 Product Allison 5th Generation Controls
• Corrects TRANSHEALTHTM displays for 5th Generation 3000/4000 Series

We Are Offering Full Teamview Support , We will Connect To your Pc  And Install The Software For you

Product Details :
